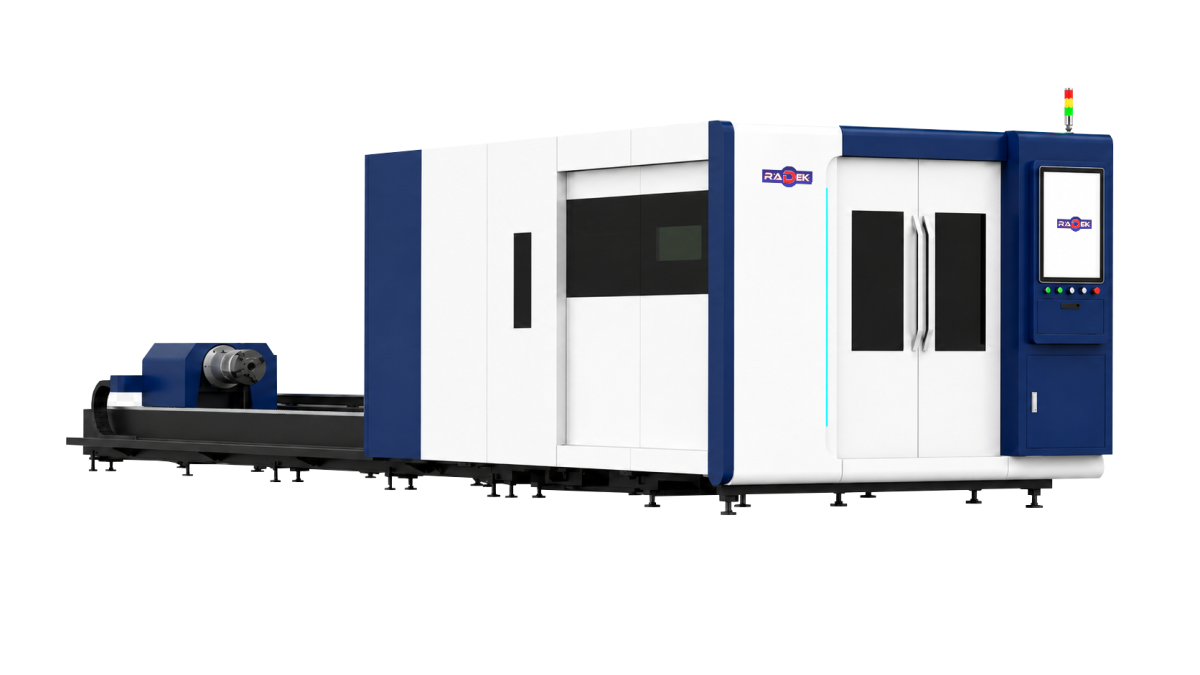

FIBER LASER

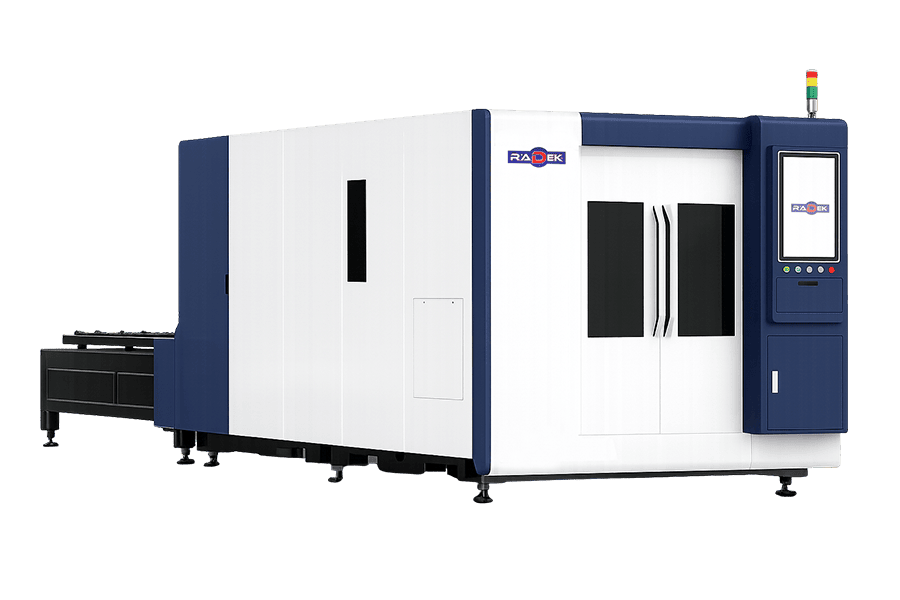

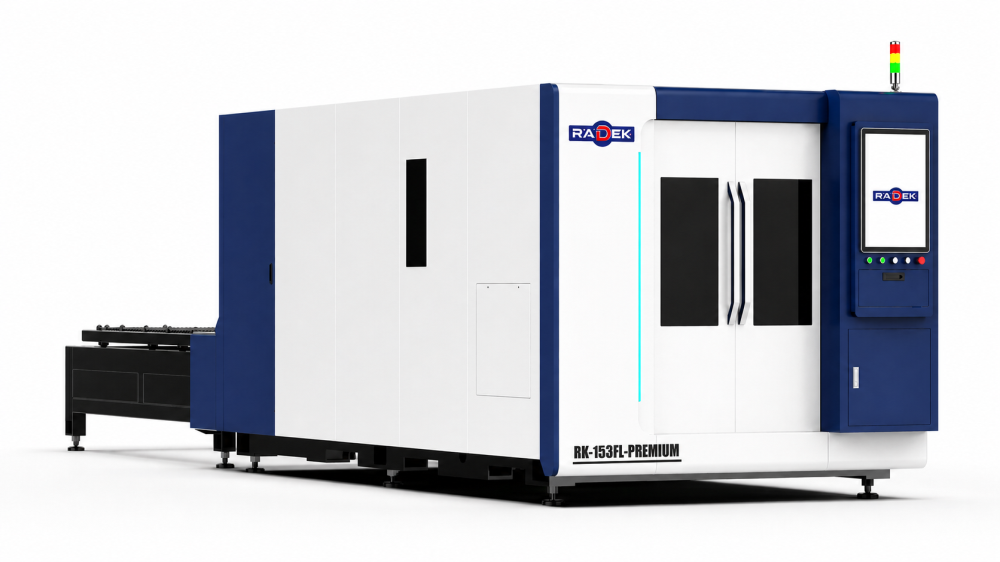

RK-153FL-PREMIUM (TC) 6KW

DESCRIPTION

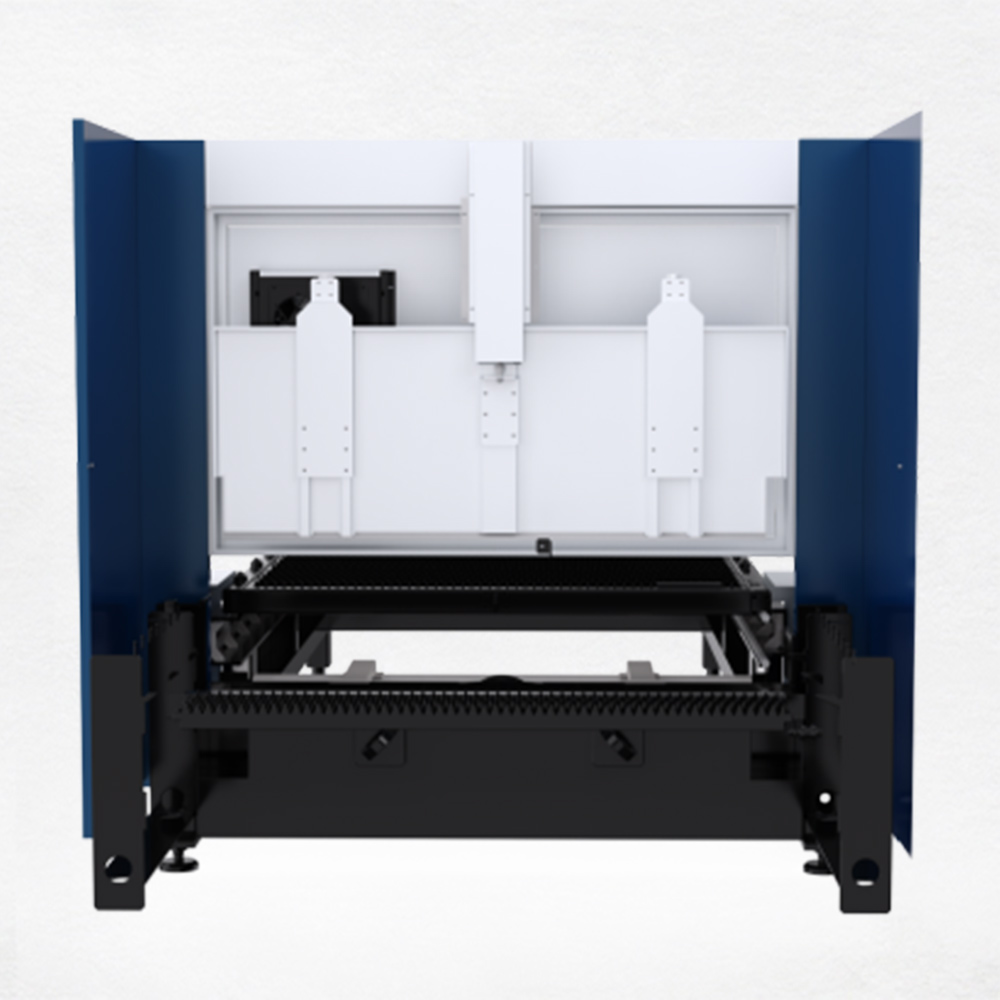

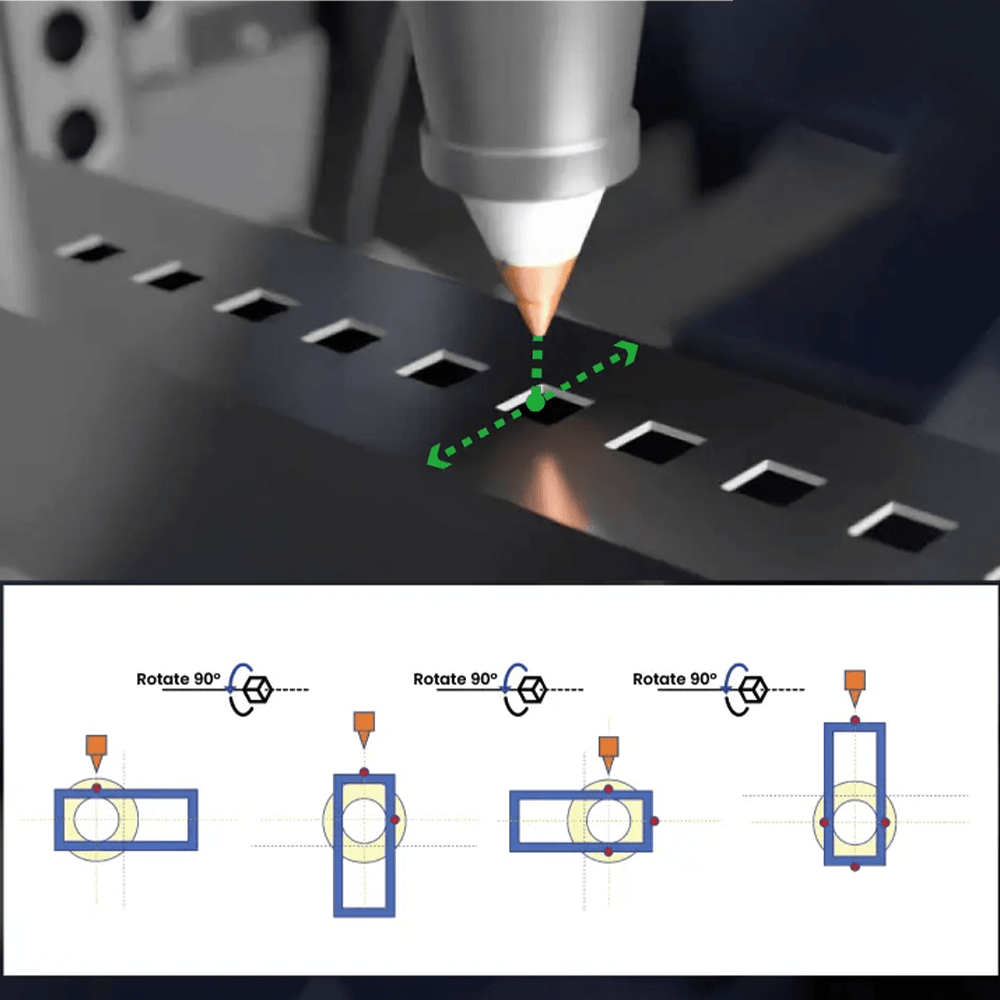

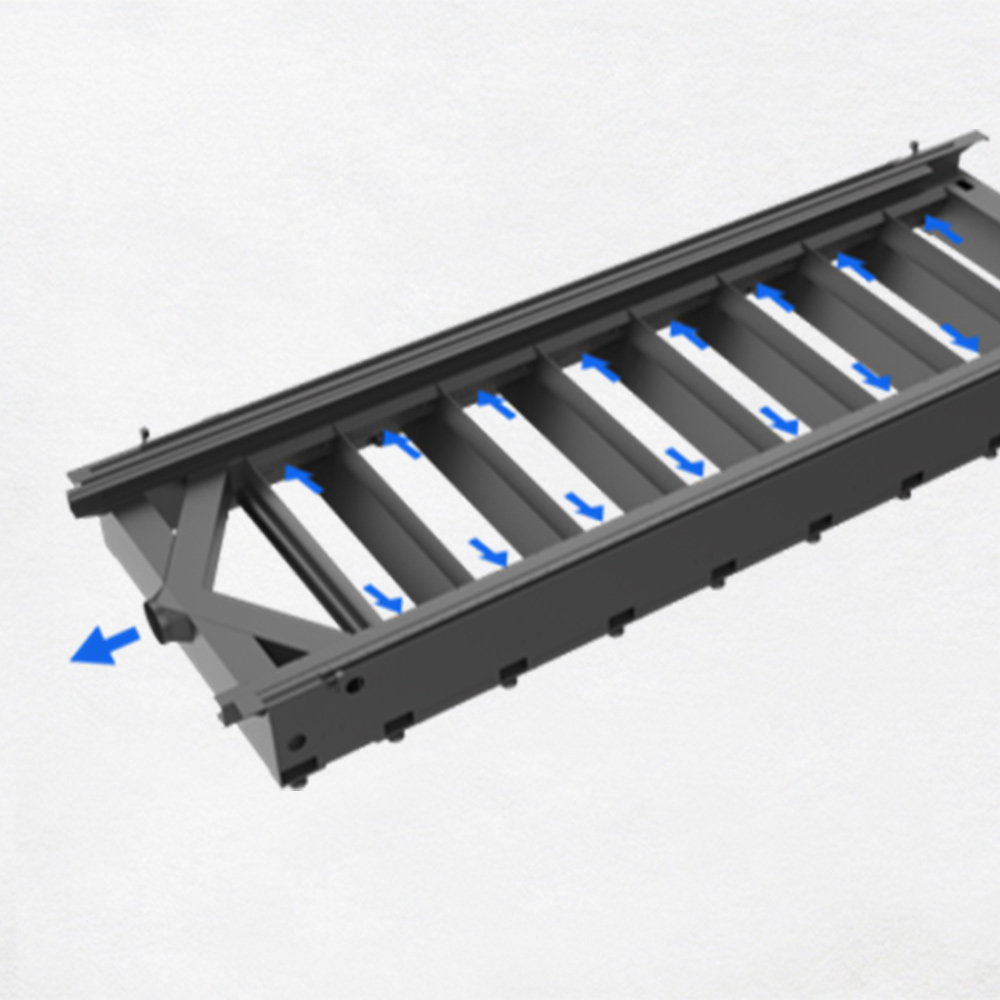

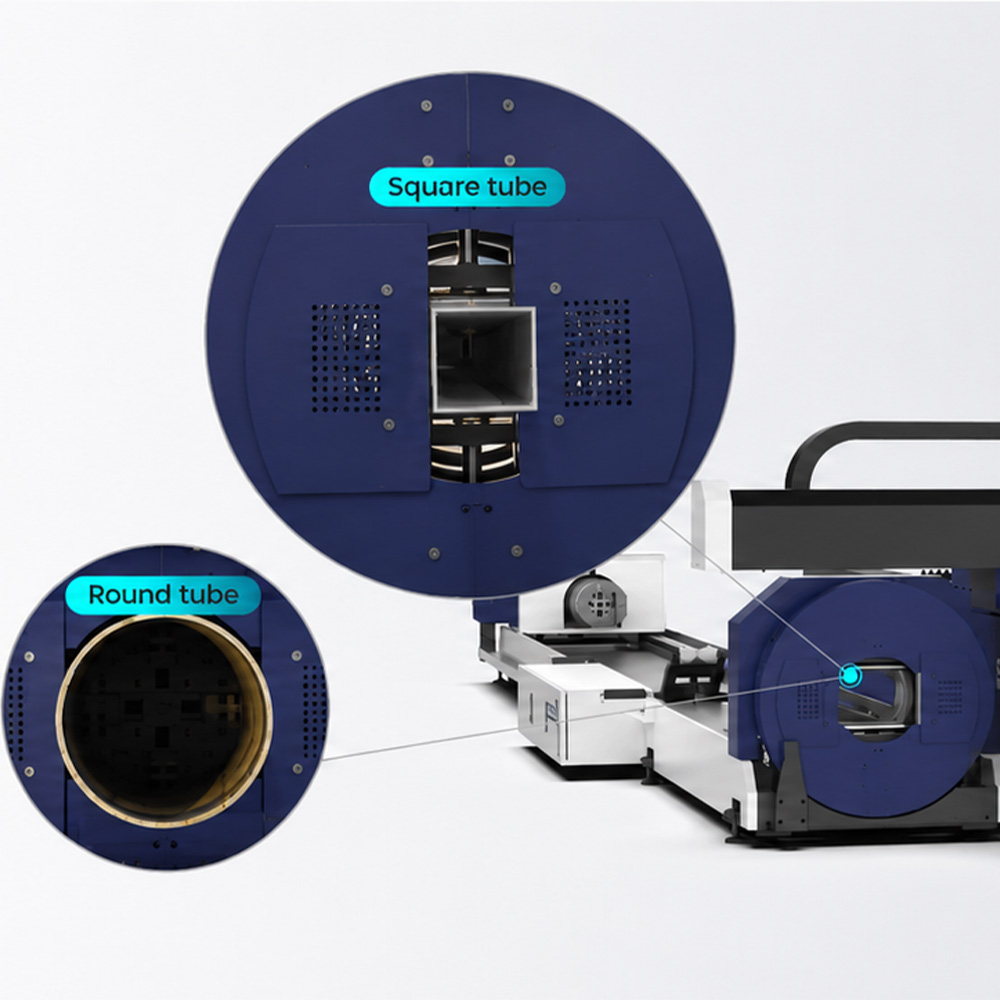

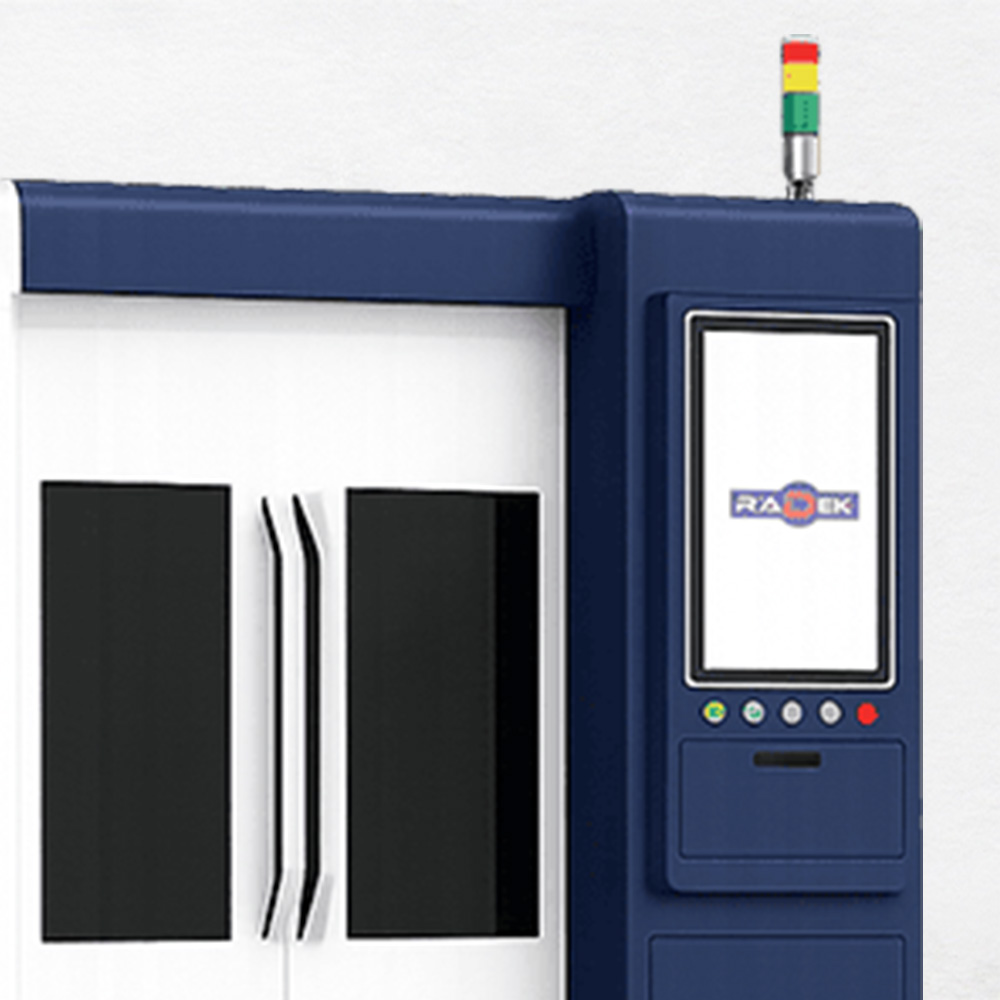

Industrial enclosed-type fiber laser with 6 kW power, designed for fast, precise, and highly efficient metal cutting without the need for additional processing. Fiber laser technology is the most advanced and fastest method for sheet metal processing, offering significantly higher speed and productivity than other cutting technologies. The machine is equipped with a MAX laser source, RAYTOOLS laser head, SHIMPO reducers, SCHNEIDER servo motors and electrical components, HANLI industrial cooling chiller, intelligent ventilation system, and voltage stabilizer. The enclosed construction provides greater safety, better control of dust and smoke, and more stable working conditions in industrial production. In addition to sheet metal cutting, the machine is equipped with a profile cutting system (tubes and structural profiles), featuring automatic centering for precise positioning and processing of various shapes, including square, round, and structural profiles. A combination of high power, stable construction, and premium components for maximum performance, precision, and cutting quality.

RADEK is a synonym for quality, precision and long-term reliability in the industry. Each machine is manufactured in accordance with the highest industrial standards, using only proven and high-quality components. With dedication to every technical detail — from design to final testing — we guarantee a long service life and flawless machine operation. So far, RADEK has successfully installed more than 4.500 machines in Macedonia and throughout the entire Balkan region, setting new standards for efficiency, support and trust.

DETAILS

SPECIFICATION

Working area1500x3000mm
Optional working area2000x4000mm
Laser power6000W
Optional laser power12000W
Movement motor typeServo motors
Y-axis motor power1800W
X-axis motor power850W

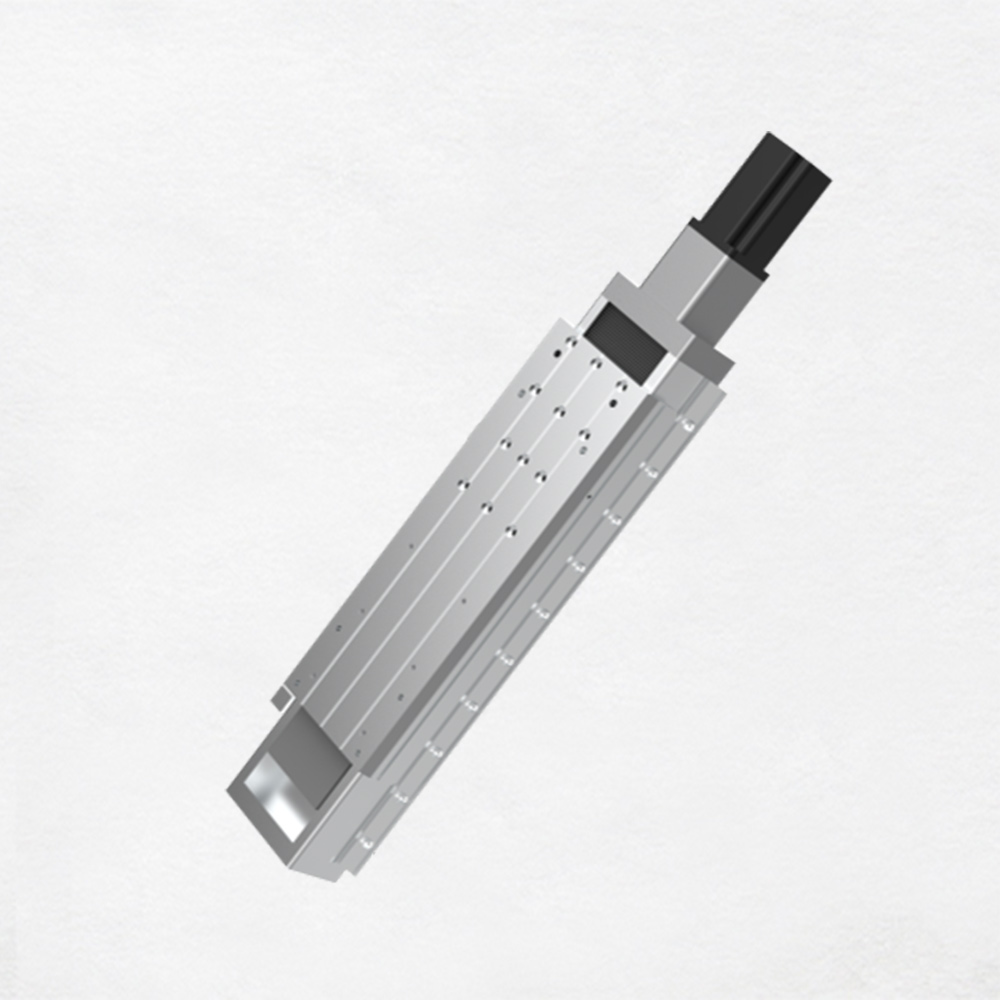

Z-axis motor power400W

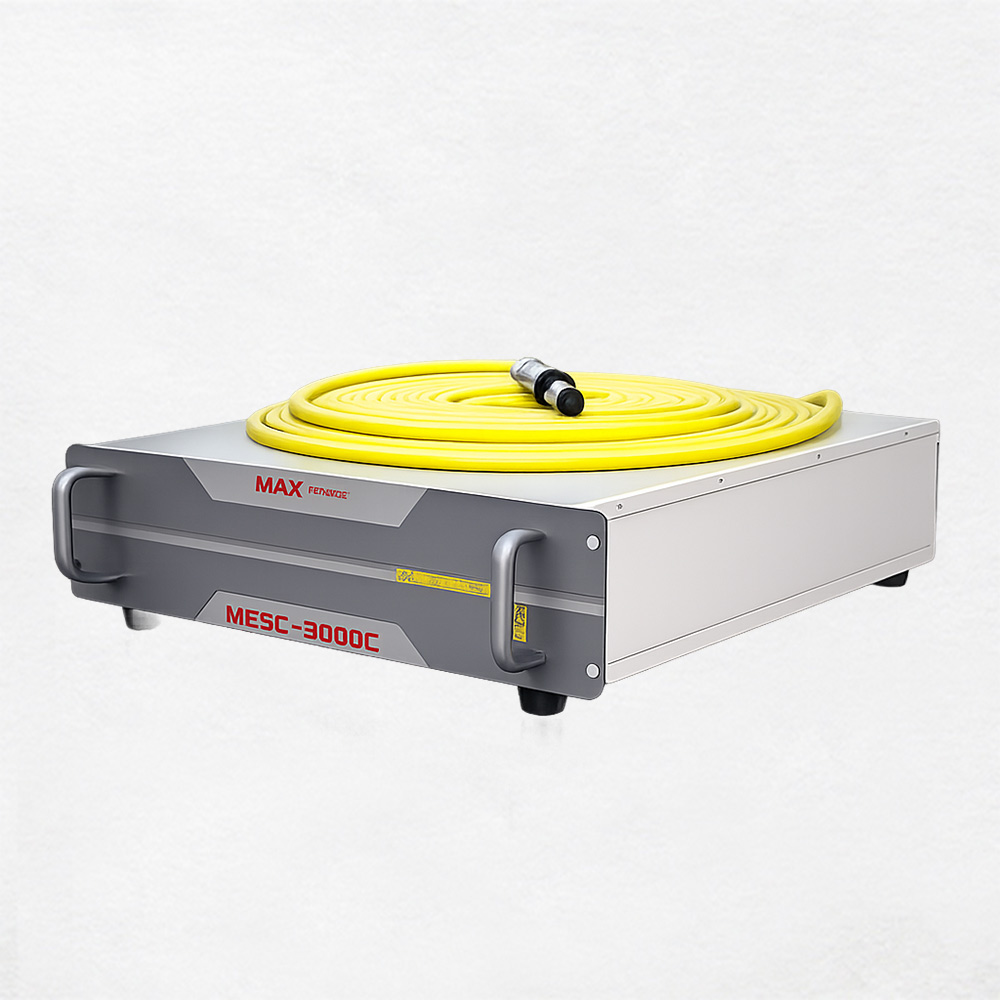

Laser source typeMax

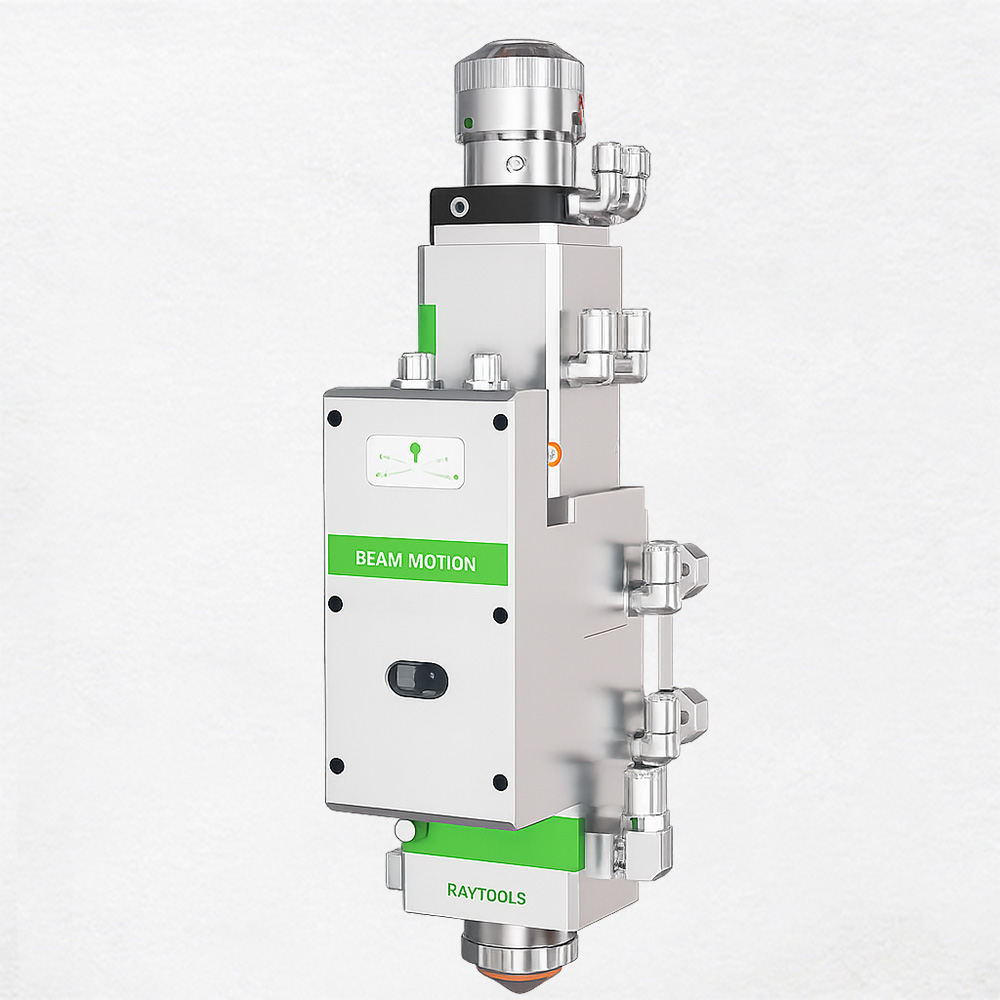

Laser head typeRaytools BM06K
Positioning accuracy±0.05mm
Repeat positioning accuracy±0.02mm
Processing speed0-30m/min
Travel speed0-130m/min
Maximum load capacity1100kg
Maximum cutting thickness for steel30mm
Maximum cutting thickness for stainless steel20mm
Maximum cutting thickness for aluminum16mm

Maximum cutting thickness for copper



12mm
Operating systemFSCUT
VentilationIncluded
Cooling chillerIncluded
Voltage stabilizerIncluded
Machine dimensions8520*2270*2180mm
Packing dimensions9000*2270*2180mm
Weight5320kg

VIDEO

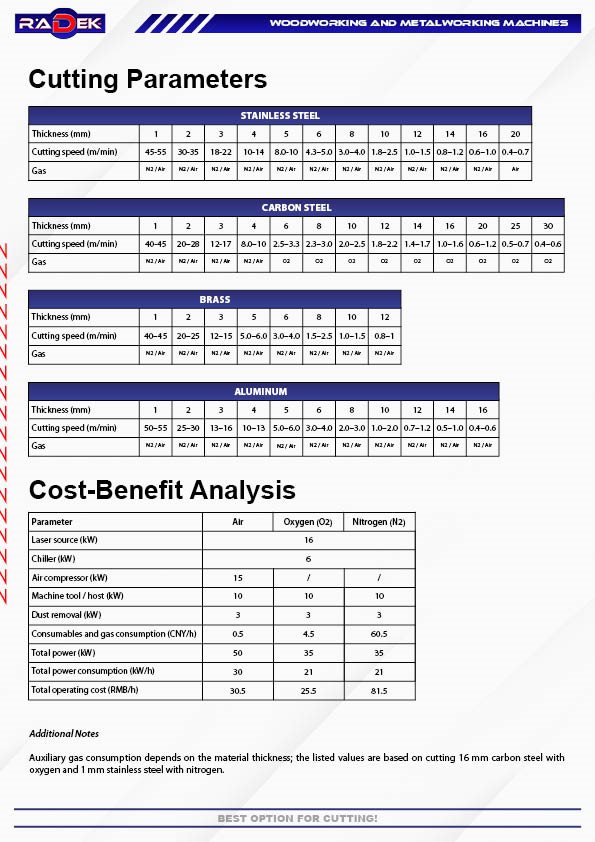

PDF DOCUMENT

SERVICE CENTER

Our service center covers all phases – from installation, commissioning, technical support and training, to regular maintenance and emergency interventions. The RADEK team consists of qualified engineers and technicians with many years of experience in the wood and metal processing industry. We respond quickly, use only original parts and are available to every client – whether it is a small workshop or a large production facility.
