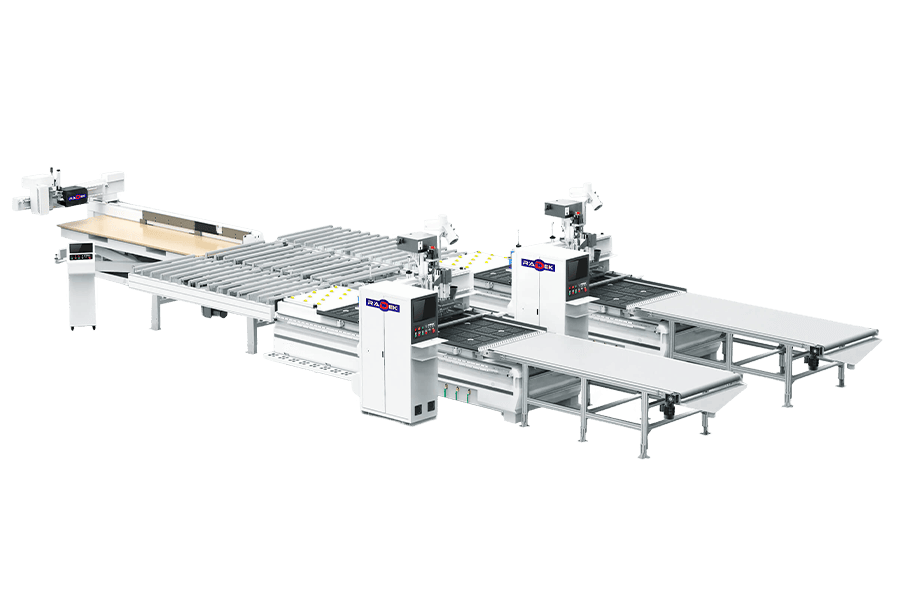

What the cnc nesting line enables

The CNC nesting line automates the cutting process of panel materials and enables better utilization of every sheet. Using nesting software, components are optimally arranged on the panel to minimize waste and maximize the number of finished parts produced from each material.

Before cutting, the system can automatically apply labels containing barcodes, dimensions, and information for each individual component. This ensures full traceability throughout the entire production process — from cutting, through edgebanding and drilling, to assembly or packaging.

After labeling, the panel is transferred to the CNC nesting machine, where it is automatically positioned, secured by a vacuum system, and processed according to the programmed operations. Once cutting is completed, the finished components are transferred to an outfeed table or conveyor system while the next panel is prepared for processing.

Main advantages

• High cutting precision;
• Better material utilization;
• Fewer human errors;
• Automatic component labeling;
• Faster preparation for edgebanding and drilling;
• Improved production organization;
• Ability to process multiple orders simultaneously;
• Integration with design and manufacturing software;
• Reduced manual handling of panels;
• Increased daily production capacity.

CNC nesting line configurations

The CNC nesting line is designed according to the required production capacity, available factory space, and the level of automation required by the customer. The basic concept includes multiple CNC nesting machines, typically starting from two machines, with the possibility of expanding the system to three, four, five, six, or more nesting machines.

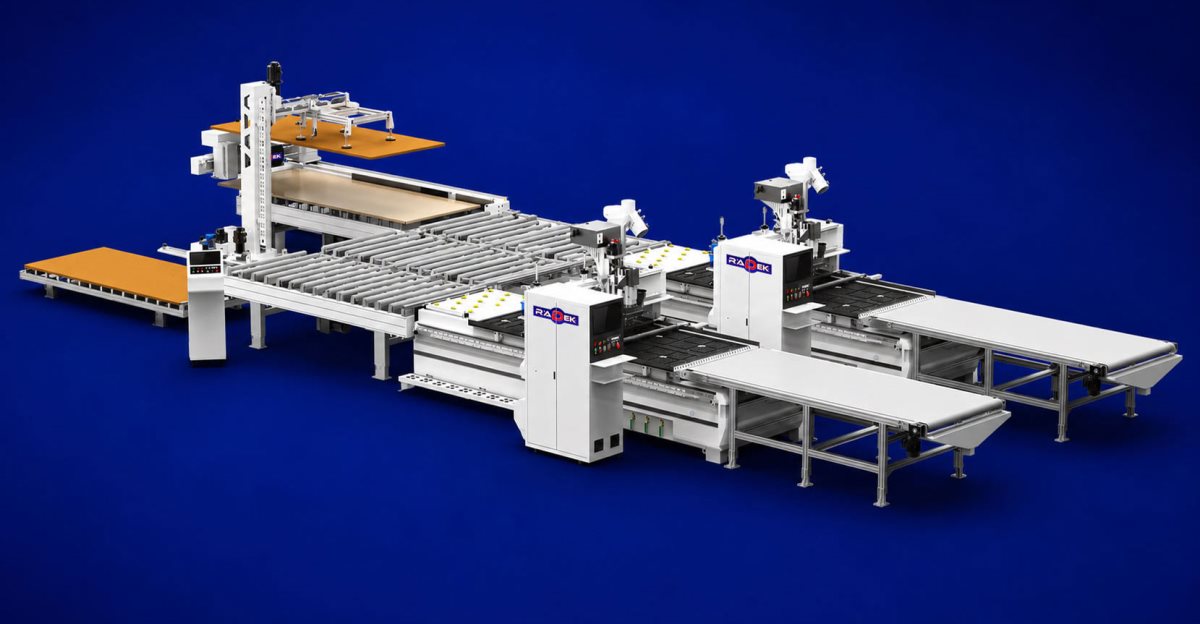

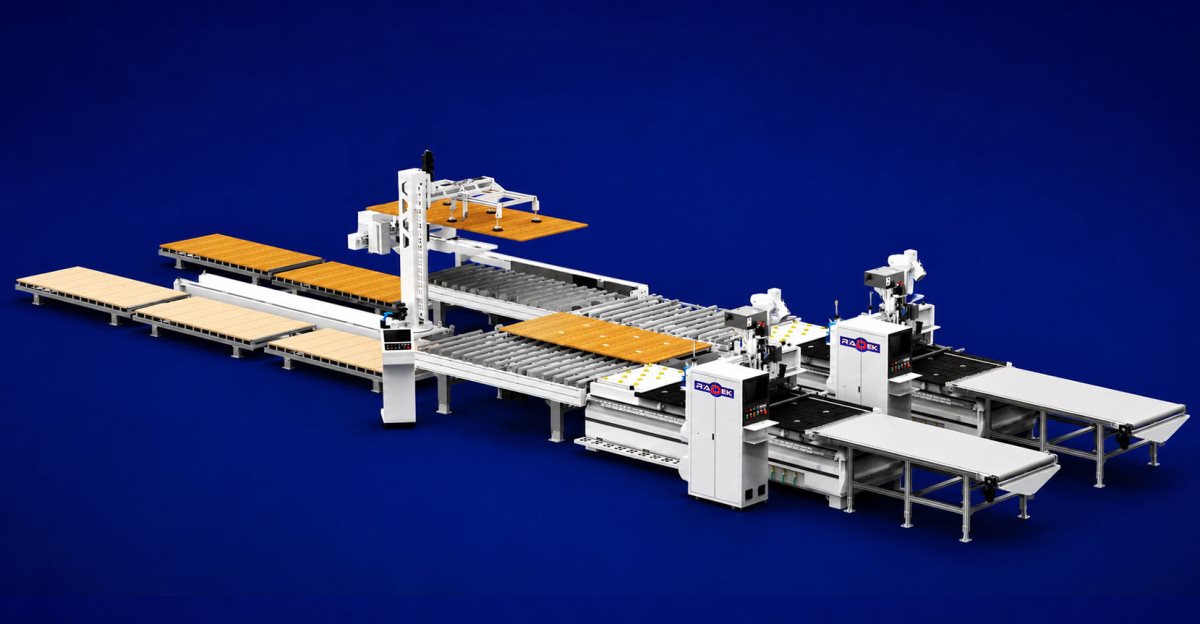

The main differences between configurations involve material loading methods, labeling systems, transportation systems, robotic loading solutions, cantilever systems, and the level of automated control. Depending on production requirements, the line can be configured with automatic labeling, robotic panel loading, multi-station cantilever solutions, cantilever loading systems, or advanced layouts with multiple nesting machines and centralized software control.

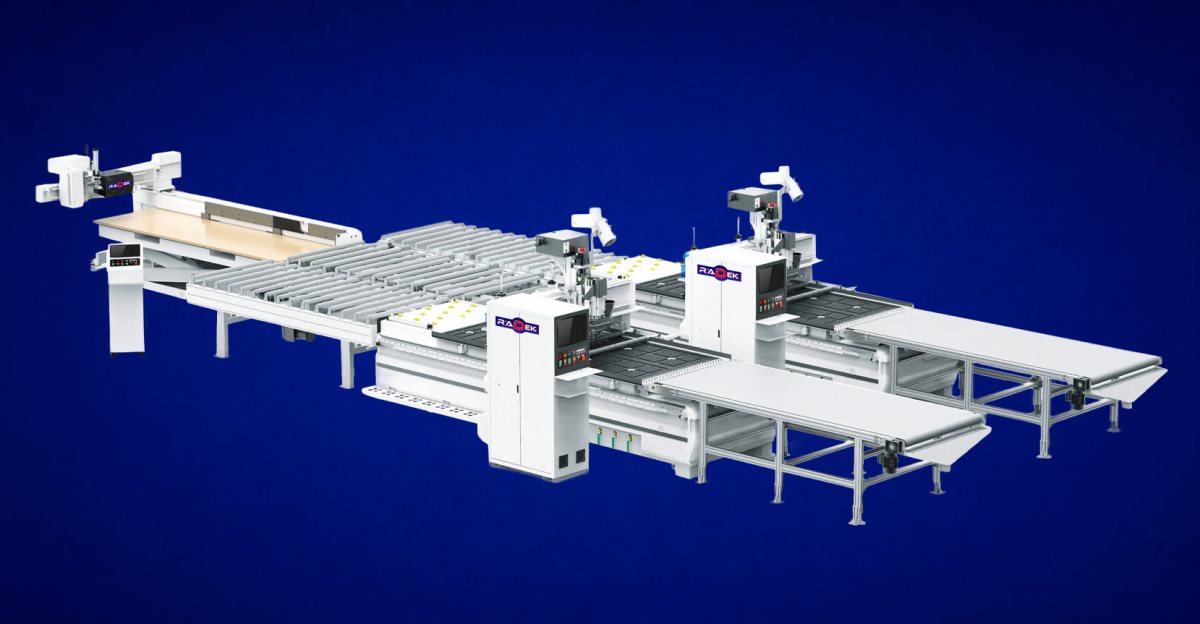

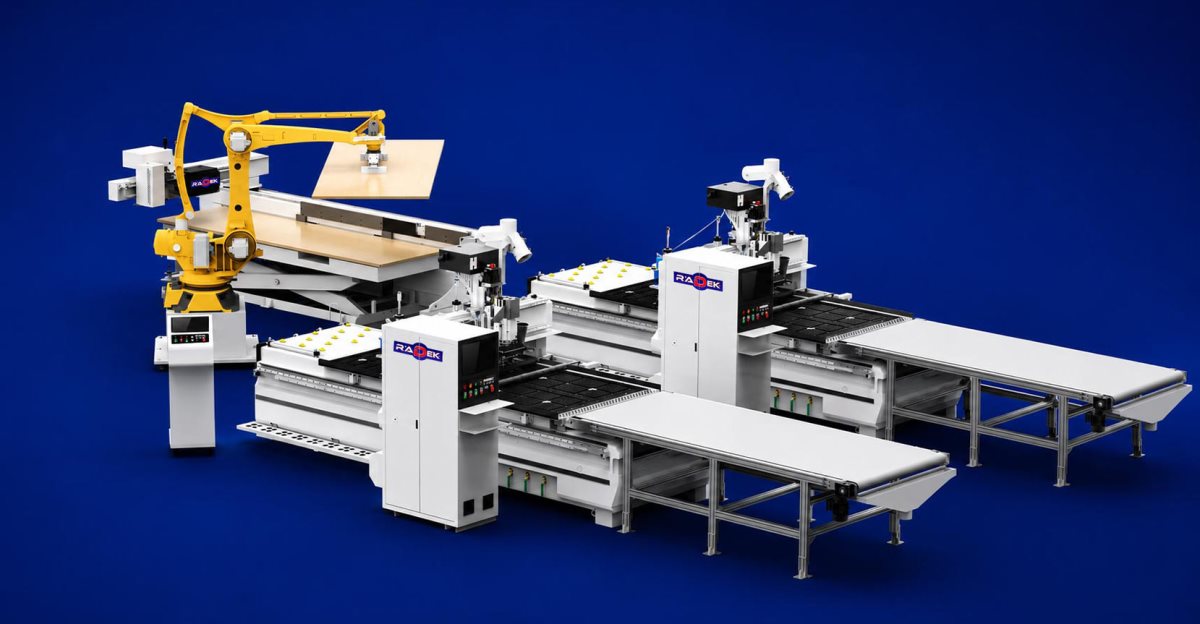

In configurations with automatic labeling, panels are marked before cutting with barcodes, dimensions, and part information, enabling complete traceability throughout subsequent production stages. In robotic loading configurations, a robot automatically picks up and positions the panels, reducing manual handling and creating a more stable process. Multi-station and cantilever solutions improve material preparation, accelerate workflow, and minimize waiting time between operations.

For larger production facilities, the line can be configured as an advanced system with multiple CNC nesting machines, automatic labeling, robotic or cantilever loading, conveyor systems, and centralized control. This provides a fast, stable, and organized cutting process while enabling integration with edgebanding, drilling, sorting, and packaging operations.

Software control and optimatization

The CNC nesting line operates through a centralized control system and cutting optimization software. The software organizes component layouts on the panel, generates machining programs, and maximizes material utilization.

Depending on the configuration, the system can support barcode workflows, parts lists, multiple file formats, and integration with existing design and manufacturing software solutions.

Capacity

Production capacity depends on the selected configuration, material type, panel dimensions, number of machining operations, nesting optimization efficiency, and overall production organization.

Advanced configurations with multiple CNC nesting machines, automatic labeling, and optimized material flow can achieve a capacity of approximately 150–200 panels within an 8-hour shift. Accurate capacity calculations require analysis of actual panel dimensions, typical components, cutting complexity, loading and unloading times, and the desired level of automation.

Who is this line for?

The RADEK CNC nesting line is designed for:
• Kitchen manufacturers;
• Wardrobe manufacturers;
• Cabinet furniture manufacturers;
• Custom furniture producers;
• Companies transitioning toward automation;
• Manufacturers seeking better material utilization;
• Companies aiming to reduce production errors;
• Producers requiring higher capacity and improved production organization.

Customized solution according to customer requirements

Every CNC nesting line is configured according to the customer's actual production requirements. During the proposal process, factors such as production type, panel dimensions, required capacity, loading and unloading methods, level of automation, existing software, and available production space are carefully analyzed.

Depending on the requirements, the line can be configured as a practical solution with two CNC nesting machines and automatic labeling, or as an advanced production system with multiple machines, robotic loading, cantilever systems, and a fully organized material flow.

RADEK support

RADEK provides complete support in configuration selection, layout design, delivery, installation, commissioning, operator training, and after-sales service.

Our team will help you choose a solution that matches your product range, production capacity, available space, and budget.

Request a quotation

If you are planning to modernize your cutting department and transition to CNC nesting production, contact the RADEK team. Together, we will analyze your current production process and propose a practical, scalable, and economically justified solution.
